Forged Wheel Fitment Data: B2B Ordering Guide

For wheel distributors, performance workshops, automotive retailers, and sourcing teams, choosing a forged-wheel design is only the beginning of an order. A useful quotation also needs the vehicle information and dimensional data that define how the wheel will mount, clear the brakes, sit inside the fender, and work with the intended tire.

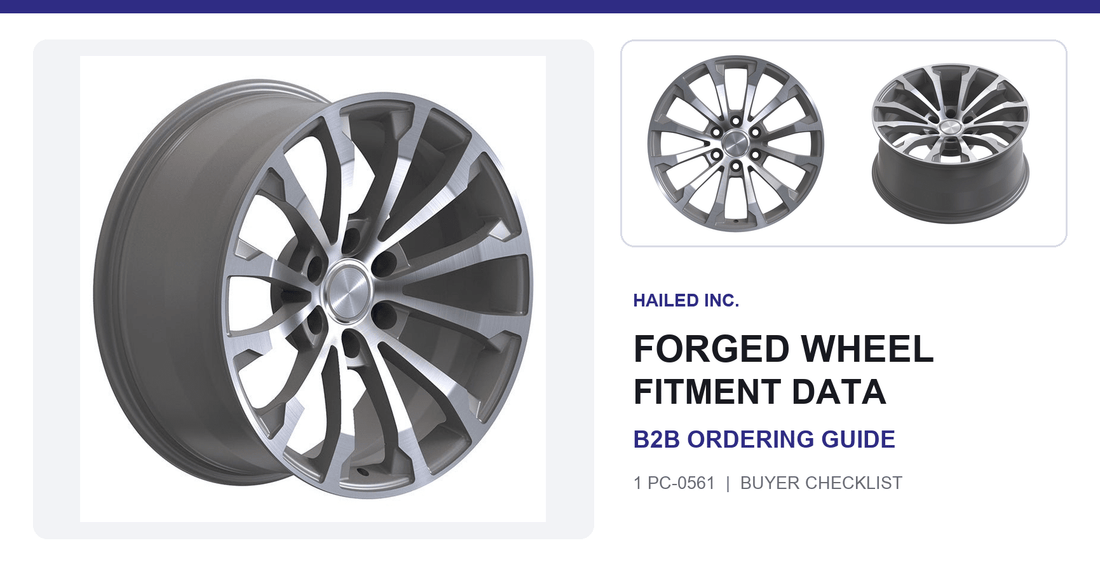

Hailed Inc. currently lists Forged Wheels (1 PC-0561). The current product page identifies the wheel as 1 PC-0561, shows three views of the same six-lug multi-spoke design, and lists both color and size as customized. Those facts make it a useful product reference, but a reference image is not a fitment specification. Buyers should send a complete data sheet and receive written confirmation before approving an order.

This guide explains the information a B2B buyer should prepare.

1. Start With the Exact Vehicle Application

State the intended vehicle before discussing wheel dimensions. Include:

• Vehicle make and model
• Model year
• Trim or performance version
• Drive configuration when relevant
• Market or country where the vehicle was sold
• Current suspension condition, including any ride-height changes
• Current wheel and tire specifications
• Clear front, side, and brake-area photos

The same model name can cover different brakes, hubs, fenders, and suspension packages. A product photo cannot confirm those interfaces. If the order is intended for several vehicle applications, create a separate fitment record for each one.

2. Define Diameter and Width for Every Position

Record wheel diameter and rim width in the same unit system used by the supplier. For a staggered setup, separate front and rear requirements instead of sending one combined size.

A buyer data sheet should show:

• Front wheel diameter and width
• Rear wheel diameter and width
• Required quantity for each position
• Intended tire size for each position
• Square or staggered configuration

Do not choose width from appearance alone. Tire size, suspension clearance, brake components, and the available space between the wheel and body all need to be considered together.

3. Confirm Bolt Pattern and Lug Count

The current 1 PC-0561 images show a six-lug layout, but the final bolt pattern must still be written in the order record. State the pitch circle diameter, commonly written as PCD, together with the lug count.

For example, the approval sheet should contain a field such as lug count x PCD, using the exact confirmed vehicle specification. Do not infer the required PCD from a similar vehicle or from a catalog image.

If the customer is changing vehicles, trims, or hubs, reconfirm this data instead of carrying it forward from an earlier order.

4. Record the Center Bore and Hub Interface

The center bore affects how the wheel locates on the vehicle hub. Send the confirmed hub diameter and ask the supplier to state the proposed wheel center-bore specification.

The order record should also identify whether any hub-centric ring, adapter, or other interface is expected. Do not assume these items are included unless they are listed in the quotation. If an additional component is proposed, confirm its dimensions and order quantity separately.

5. Specify Offset and Check Inner and Outer Clearance

Offset influences where the wheel sits relative to the suspension and fender. A change in width can also change both inner and outer clearance, even when the diameter remains the same.

Before approval, review:

• Proposed offset for each wheel position
• Distance to suspension components on the inner side
• Fender and wheel-arch clearance on the outer side
• Tire sidewall position
• Steering clearance through the required range of motion
• Clearance at the intended ride height

Avoid using terms such as "flush" or "aggressive" as the only instruction. Convert the intended appearance into measurable fitment data and confirm the result against the actual vehicle.

6. Provide Brake-Clearance Information

Wheel diameter and PCD do not confirm brake clearance. Caliper shape, rotor diameter, spoke profile, and wheel-barrel space can all affect the result.

When available, send:

• Brake package or trim name
• Rotor diameter
• Caliper photos
• Caliper-to-hub dimensions
• A brake-clearance template supplied by the vehicle or brake manufacturer

Ask the supplier what clearance information is required for review. If the vehicle has an upgraded brake kit, identify it explicitly. Do not approve the order using standard-brake assumptions.

7. Confirm TPMS, Valves, Center Caps, and Hardware

The visible wheel design is only one part of the installed assembly. Clarify whether the quotation includes or excludes:

• TPMS sensors
• Valve stems
• Center caps
• Lug nuts or bolts
• Wheel locks
• Hub-centric rings
• Spacers or adapters

If original vehicle components will be transferred, state that in the approval record and verify compatibility. Hardware type, seat profile, and thread specification should be confirmed by the responsible installer or technical supplier.

8. Approve the Finish in Writing

The 1 PC-0561 product page lists color as customized and shows a gray wheel with machined-looking spoke faces. Screen images can change with lighting, compression, and display settings, so they should not be the only finish instruction.

For a custom finish, record:

• Base color
• Face treatment
• Gloss or matte level
• Lip or barrel finish if different
• Center-cap finish
• Approved reference image or sample

Use the supplier's confirmed finish description on the purchase order. If a sample is required, identify the approval method before the larger order proceeds.

9. Request the Applicable Load and Order Data

The public product page does not state a load rating for the customized order. Ask the supplier to confirm the applicable specification for the proposed size and vehicle application. The buyer should provide the actual vehicle application rather than selecting a wheel only by style.

Also state the quantity, destination country, intended use, and any repeat-order requirements. If several fitments share one design, keep their technical records separate so dimensions are not mixed during quotation or packing.

10. Confirm Packaging and Identification

Before shipment, agree on how each wheel and each fitment will be identified. A B2B packing discussion can cover:

• Units per carton
• Face, rim-edge, and center protection
• Separation of front and rear sizes
• Carton labels with SKU and fitment data
• Quantity and destination marks
• Any distributor or purchase-order reference

Packaging should be confirmed for the specific finish, quantity, and transport plan. A packing method used for one wheel order may not apply to another.

11. Build One Written Approval Sheet

Before placing the order, keep one approval sheet containing:

• Product link and design reference: 1 PC-0561
• Vehicle make, model, year, trim, and market
• Front and rear diameter, width, and offset
• Lug count and PCD
• Center bore
• Tire sizes
• Brake-clearance information
• TPMS, caps, valves, and hardware scope
• Finish approval
• Quantity, destination, packaging, and labels

If any item changes, update the sheet and request a new confirmation. This gives buyers, suppliers, workshops, and receiving teams one consistent order reference.
